Neck Traction Frame

Key words：

A44-7

Category：

Neurosurgery Head Bracket

attachment：

►1.PRODUCT DESCRIPTION

1.The main body is made of 302 stainless steel precision machining, durable, to provide perfect stability for surgery.

2.The surface is treated by electrolysis and oxidation process, which is more wear-resistant and easy to clean and disinfect.

3.The head support can adjust the size distance, is made of polymer gel, soft texture, elastic close to human skin, can relieve

local tissue pressure, reduce mental pressure, avoid iatrogenic injury.

4.Varying tractive forces are achieved by hanging different weights.

5.The rod has a variety of sizes to choose from, matching any brand operating bed, can also be customized non-standard

operating bed.

6.The neck traction frame can be adjusted arbitrarily according to the needs of surgery, so as to obtain the best head position.

►2.TECHNICAL PARAMETERS

Forward and backward movement	300±10mm
Lifting capacity	300±10mm
Cushion spacing of head support	0~90mm
Longitudinal rotation	170°±5°
Horizontal rotation	360°
Installation center distance	75~550mm

►3.STANDARD CONFIGURATION

Main body of neck traction frame	1 set
Traction support	1 set
Haulage rope	1 set
Traction bow	1 pcs
0.5kg weight	1 pcs
1kg weight	1 pcs
2kg weight	1 pcs
User manual	1 pcs

►4.OPTIONAL CONFIGURATION, ACCESSORIES AND SERVICE

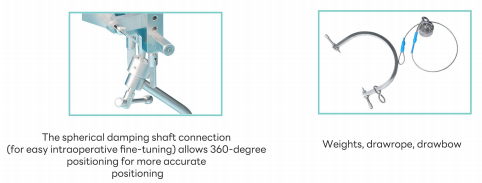

►5.SHOW DETAILS
