    • Commodity name: Multifunctional Carbon Fiber Composite Head Frame
    • 产品编号: OTA-LTJ-2

    ►1.PRODUCT DESCRIPTION

    1.Multi-functional surgical head frame is made of high quality carbon fiber composite material, the material is dense. Rugged

    and light weight. Minimal artifacts can be produced in CT, X-ray fluorescence imaging, and digital subtraction angiography(DSA).

    2.Head clamp U-shaped design, uniform stress conduction.

    3.Three-point fixed with scale display.

    4.There is a platform to prevent excessive penetration.

    5.Quick replacement of head nails or gel elastic headband for non-invasive fixation





    ►2.TECHNICAL PARAMETERS

    The bottom shaft length of the head frame 630mm
    Adjust width 165~600mm
    Head frame extension up and down lifting capacity 830±50mm
    The skull fixator rotates 360°
    The hardness of titanium alloy head nail HRC 40~48



    ►3.STANDARD CONFIGURATION

    Craniocerebral nail 1 set
    U-shaped head clip 1 set
    Cardon joint 1 set
    Multifunctional base 1 set
    High-end packing case 1 pcs
    User manual 1 pcs



    ►4.OPTIONAL CONFIGURATION, ACCESSORIES AND SERVICE

    Polymer gel head holder
    Colours
    OEM

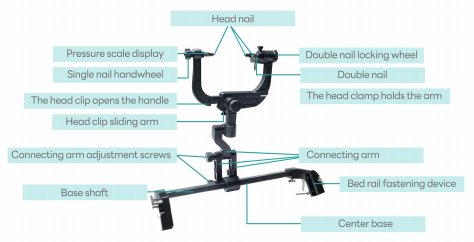

    ►5.SHOW DETAILS
