Orthopedic Traction Frame For Hip Joint

Key words：

A44-7

Category：

Orthopedic Traction Frame

attachment：

►1.PRODUCT DESCRIPTION

Carbon fiber orthopedic traction frame is suitable for hip lower limb traction, lower limb trauma, bone and joint, sports medicine

surgery needs, composed of trauma, joint and sports medicine multi-professional comprehensive application of efficient surgical

positioning solution, making doctors more convenient and fast surgery operation, is the standard of orthopedic precision medicine.

►2.TECHNICAL PARAMETERS

Overall lifting height	lifting with the operating table
Extension rod (short) extension	≥180°
Extension rod (short) length	300mm
Extension rod (long) extension	≥300°
Extension rod (long) length	1,450mm
Horizontal displacement of tractor	≥1,350mm
Traction stroke	≥190mm
Leg support displacement	≥1,200mm
The lifting of the side lying support	≥120mm
Vertical displacement of tractor	≥380mm
Tractor horizontal rotation angle	360°
Vertical rotation angle of tractor	360°
Traction shoe rotation angle	360°
Length of perineal brace	230mm
Perineal brace diameter	80mm
Packing size	1,650660880 98kg (wooden)

►3.STANDARD CONFIGURATION

Carbon fiber hip plate with cushion	1 group
Carbon fiber perineal column	1 pcs
Carbon fiber universal traction bar	2 sets
Traction boots	1 pair
Calf support	1 pcs
Leg braces	1 pcs
Tractor	2 sets
Landing support rod	2 sets
Auxiliary trolley	1 pcs
User manual	1 pcs

►4.OPTIONAL CONFIGURATION, ACCESSORIES AND SERVICE

OEM

Colours

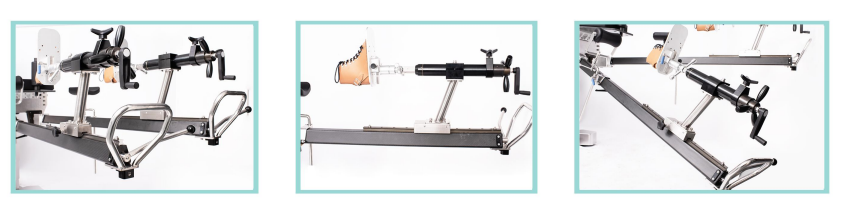

►5.SHOW DETAILS
