Floor Type Traction Frame


Key words:

A44-7

Category:

Orthopedic Traction Frame

attachment:

MAKE AN INQUIRY

  • Parameters
  • Features
  • Quality
  • Warranty
    • Commodity name: Floor Type Traction Frame
    • 产品编号: OTA-Q1

    ►1.PRODUCT DESCRIPTION

    The whole traction frame is made of 304 stainless steel, the key angle adjustment parts are tightened by end teeth, the

    key parts are formed by precision casting, and the unique mechanical structure can be used with any type of operating

    table.





    ►2.TECHNICAL PARAMETERS

    Lifting height of seat plate 850~1,100mm
    Extension of two main support rods ≥300°
    Tractor flat displacement (telescopic rod expansion stroke) ≥550mm
    Vertical displacement of tractor ≥380mm
    Tractor horizontal rotation angle 360°
    Vertical rotation angle of tractor 360°
    Traction shoe ratation angle 360°
    Traction stroke ≥190mm
    Leg support displacement ≥490mm
    Length of perineal brace 230mm
    Perineal brace diameter 80mm
    Packing size 1,230*550*920 86kg (wooden)



    ►3.STANDARD CONFIGURATION

    Shelf life 1 year
    Material carbon fiber
    Motor imported from Germany
    User manual 1 pcs


    ►4.OPTIONAL CONFIGURATION, ACCESSORIES AND SERVICE

    OEM
    Colours
    Integrated battery
    Voltage 220V 50Hz or 110V 60Hz

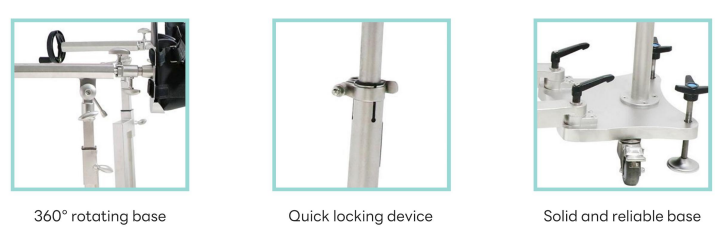

    ►5.SHOW DETAILS
