Carbon Fiber Orthopedic Traction Frame


Key words:

A44-7

Category:

Orthopedic Traction Frame

attachment:

MAKE AN INQUIRY

  • Parameters
  • Features
  • Quality
  • Warranty
    • Commodity name: Carbon Fiber Orthopedic Traction Frame
    • 产品编号: OTA-Q3

    ►1.PRODUCT DESCRIPTION

    1.The main body of this traction frame is made of imported carbon fiber composite material, which has excellent X-ray penetration

    performance and is used with C-arm X-ray machine.

    2.The remaining metal parts are made of 304 stainless steel, the key angle adjustment parts are tightened by end teeth, and the

    key parts are formed by precision casting. Traction frame single joint design, angle conversion, to ensure a wide field of view during

    surgery.



    ►2.TECHNICAL PARAMETERS

    Overall lifting height lifting with the operating table
    Extension rod (short) extension ≥180°
    Extension rod (short) length 300mm
    Extension rod (long) extension ≥300°
    Extension rod (long) length 1,450mm
    Horizontal displacement of tractor ≥1,350mm
    Traction stroke ≥190mm
    Leg support displacement ≥1,200mm
    The lifting of the side lying support ≥120mm
    Vertical displacement of tractor ≥380mm
    Tractor horizontal rotation angle 360°
    Vertical rotation angle of tractor 360°
    Traction shoe rotation angle 360°
    Length of perineal brace 230mm
    Perineal brace diameter 80mm
    Packing size 1,650*660*880 98kg (wooden)



    ►3.STANDARD CONFIGURATION

    Connecting socket 1 group
    Carbon fiber extension rod (short) 2 pcs
    Carbon fiber extension rod (length) 2 pcs
    Supine seating board(with sponge cushion) 1 group
    Perineal column 1 group
    Leg support to secure the slider 2 sets
    Leg brace 2 sets
    Support leg kit 2 sets
    Traction structure fixed slider 2 sets
    Connecting tube under tractor 2 sets
    Traction mechanism 2 sets
    Traction shoes 2 sets
    An auxiliary trolley is composed of spare parts 1 group
    User manual 1 pcs

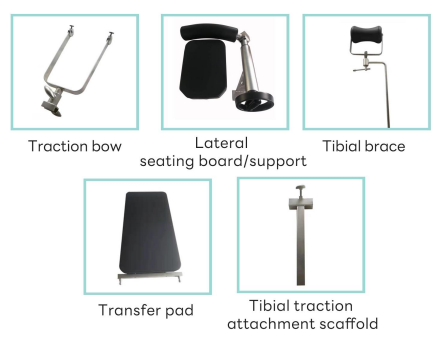

    ►4.OPTIONAL CONFIGURATION, ACCESSORIES AND SERVICE

    Traction bow
    Lateral seating board/support
    Tibial brace
    Transfer pad
    Tibial traction attachment scaffold
    OEM





    ►5.SHOW DETAILS
