Suspended Traction Frame

Key words：

A44-7

Category：

Orthopedic Traction Frame

attachment：

►1.PRODUCT DESCRIPTION

The whole traction frame is made of 304 stainless steel, the key angle adjustment parts are tightened by end teeth, and the

key parts are formed by precision casting. The traction frame is double-joint design and has a telescopic extension rod, which

can be converted from multipe angles to ensure a wide field of view during surgery.

►2.TECHNICAL PARAMETERS

Overall lifting height	lifting with the operating table
Extension rod (short) extension	≥180°
Extension rod (short) length	310mm
Extension rod (long) extension	≥300°
Extension rod (long) length	800mm
Tractor horizontal displacement (telescopic rod expansion stroke)	≥650mm
Vertical displacement of tractor	≥380mm
Tractor horizontal rotation angle	360°
Vertical rotation angle of tractor	360°
Traction shoe ratation angle	360°
Traction stroke	≥190mm
Leg support displacement	≥650mm
Length of perineal brace	230mm
Perineal brace diameter	80mm
Packing size	1,450650970 98kg (wooden)

►3.STANDARD CONFIGURATION

►4.OPTIONAL CONFIGURATION, ACCESSORIES AND SERVICE

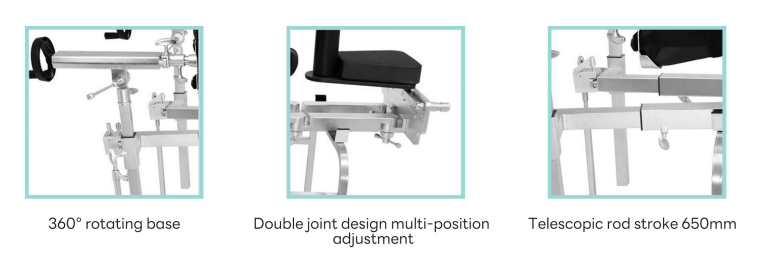

►5.SHOW DETAILS
